Tungsten carbide inserts are essential components in various manufacturing processes, prized for their hardness and wear resistance. These inserts are widely used in cutting tools for applications such as boring, drilling, milling, and turning. Understanding the manufacturing process of these high-performance tools is crucial to appreciating their complexity and precision. The process involves several key stages: powder preparation, mixing, shaping, sintering, and finishing. Some inserts also undergo additional steps like hot isostatic pressing (HIP) and coating to enhance their properties.
Powder Preparation
The first step in manufacturing tungsten carbide inserts is the careful selection and preparation of raw materials. High-purity tungsten carbide and cobalt powders are sourced, with the quality of these materials being critical for the final product's performance.
Raw Material Selection:
- Tungsten Carbide: Provides hardness and wear resistance.
- Cobalt: Acts as a binder, providing toughness and strength.
- Additional Carbides: Titanium carbide or tantalum carbide may be added to enhance specific properties.
The powders undergo thorough analysis to determine particle size distribution, purity, and chemical composition. Precise amounts of tungsten carbide and cobalt powders are then weighed according to the desired grade specifications. The cobalt content typically ranges from 6% to 30%, depending on the intended application of the insert. For example, inserts designed for high-impact applications might require a higher cobalt content to enhance toughness, while those for high-precision finishing might use lower cobalt content to maximize hardness and wear resistance.
The use of secondary carbides, such as titanium carbide (TiC), tantalum carbide (TaC), and niobium carbide (NbC), is also a critical aspect of powder preparation. These carbides are often added in small amounts to refine the grain structure of the tungsten carbide, improve high-temperature hardness, and enhance resistance to cratering and flank wear. Each additive offers specific benefits tailored to different machining conditions and workpiece materials.
If required, additional carbides like titanium carbide or tantalum carbide are added at this stage to enhance specific properties.
Mixing and Milling
The mixing and milling stage is crucial for ensuring the homogeneity of the final product. The goal is to create a uniform dispersion of tungsten carbide and cobalt particles, as any segregation or agglomeration can lead to defects in the final product.
Initial Mixing:
The measured powders are thoroughly mixed in a V-blender or turbula mixer to ensure uniform distribution of all components. These mixers use a combination of tumbling and shaking to achieve a homogenous blend, minimizing the risk of localized variations in composition.

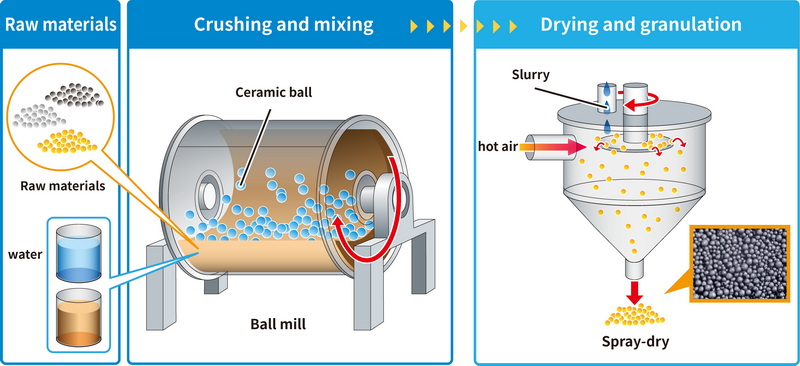

Ball Milling:
The mixture is then transferred to a ball mill, a device that uses hard, wear-resistant balls (often made of tungsten carbide) to further mix and grind the powder. A liquid medium, typically alcohol, is added to facilitate the milling process and prevent oxidation. The milling process can last anywhere from 24 to 72 hours, depending on the desired particle size and grade characteristics.
During milling, the powder particles are reduced to submicron sizes, typically ranging from 0.5 to 5 micrometers. Achieving this fine particle size is crucial for enhancing the sintering process and improving the mechanical properties of the final product. Smaller particles allow for better packing and more uniform sintering, resulting in a denser and stronger insert.
After milling, the slurry is dried using spray drying or vacuum drying techniques to remove the liquid medium. Spray drying involves atomizing the slurry into a hot gas stream, causing the liquid to evaporate rapidly and leaving behind a fine, dry powder. Vacuum drying, on the other hand, uses reduced pressure to lower the boiling point of the liquid, allowing it to evaporate at a lower temperature and minimizing the risk of oxidation or decomposition of the powder.
Shaping
After mixing, the homogeneous mixture is ready for shaping. Several shaping methods can be utilized, including pressing, extrusion, or injection molding. The choice of shaping method depends on the desired geometry of the insert, the production volume, and the required precision.
Powder Lubrication:
A small amount of organic binder (often paraffin wax) is added to the powder to improve its flowability and compressibility. The binder acts as a lubricant, reducing friction between the powder particles and allowing them to pack more tightly during pressing.
Die Preparation:
A die with the shape of the desired insert is prepared. The die cavity is often slightly larger to account for shrinkage during sintering. The die is typically made of hardened steel or tungsten carbide to withstand the high pressures involved in pressing.
Compaction:
The prepared powder mixture is carefully poured into the die cavity. The filling process must be controlled to ensure uniform density throughout the powder bed. The powder is compressed under high pressure, typically between 10 and 30 tons per square inch, using hydraulic or mechanical presses. The result is a "green compact," which has the basic shape of the final insert but is still relatively soft and fragile. The green compact is carefully ejected from the die.
Pre-Sintering (Optional)
Some manufacturers include a pre-sintering step. The green compacts are heated to a temperature between 500°C and 900°C. This process removes the organic binder used in the pressing stage and slightly increases the strength of the compact, making it easier to handle in subsequent steps. Removing the binder before sintering is crucial to prevent the formation of carbon residue, which can negatively impact the properties of the final product.
Sintering
Sintering is a critical step, transforming the fragile green compact into a dense, hard carbide insert. The sintering process involves heating the compact to a high temperature, typically between 1300°C and 1600°C, in a controlled atmosphere.
Furnace Loading:
The green compacts (or pre-sintered parts) are loaded into a sintering furnace. The furnace atmosphere is carefully controlled, often using vacuum or an inert gas like argon to prevent oxidation. The arrangement of the compacts within the furnace is also important to ensure uniform heating and prevent distortion.
Temperature Ramp-Up:
The temperature is gradually increased to around 1400°C (near the melting point of cobalt). The temperature is maintained for a specific period, typically 1-3 hours, allowing the cobalt to melt and flow between the tungsten carbide particles. The molten cobalt acts as a binder, filling the spaces between the carbide particles. The furnace is slowly cooled, allowing the cobalt to solidify and bind the carbide particles together.
During sintering, the insert shrinks by about 17-25% due to the elimination of pores and the consolidation of the structure. Precise control of the sintering parameters, such as temperature, time, and atmosphere, is essential to achieving the desired density, microstructure, and mechanical properties.
According to Sandvik Coromant, the inserts are heated to approximately 1,500 degrees Celsius in a process that takes about 13 hours and fuses the pressed powder into cemented carbide. Shrinkage in the sintering process is about 50 percent; so, a sintered insert is only about half the size of the pressed piece.
Hot Isostatic Pressing (HIP) (Optional)
Some high-performance inserts undergo an additional step. The sintered inserts are placed in a special chamber filled with inert gas at very high pressure (up to 30,000 psi). The chamber is heated to temperatures close to the sintering temperature. The combination of high pressure and temperature eliminates any remaining porosity, resulting in a fully dense structure. HIP treatment significantly enhances the mechanical properties of the inserts, particularly their fatigue strength and fracture toughness.
Grinding and Finishing
After sintering or HIP, the inserts are typically subjected to grinding and finishing operations to achieve the final dimensions, tolerances, and surface finish.
Grinding:
The inserts are ground using diamond grinding wheels to remove any surface imperfections and achieve the desired shape and size. Grinding is a precision process that requires careful control of the grinding parameters to avoid damaging the inserts.
Surface Treatment:
Some inserts may undergo additional surface treatments, such as polishing or lapping, to improve their surface finish and reduce friction.
Coating (Optional)
Many carbide inserts undergo an additional step: coating. This enhances the insert's wear resistance and thermal barrier properties. The inserts are placed in fixtures on a carousel and then put into an oven with a low pressure where they are coated. This is where the insert gets its specific color.
Chemical Vapor Deposition (CVD):
CVD involves the reaction of gaseous precursors at high temperatures to deposit a thin, hard coating onto the insert surface. Common CVD coatings include titanium carbide (TiC), titanium nitride (TiN), and aluminum oxide (Al2O3).
Physical Vapor Deposition (PVD):
PVD involves the vaporization of a solid material in a vacuum and its subsequent deposition onto the insert surface. PVD coatings are typically thinner and smoother than CVD coatings, making them suitable for high-precision applications.
Applications of Tungsten Carbide Inserts
Tungsten carbide inserts are used in a wide array of applications due to their exceptional hardness, wear resistance, and high-temperature performance. These applications span across various industries, including metalworking, mining, construction, and automotive. Here are some of the primary uses of tungsten carbide inserts:
1. Cutting Tools
Tungsten carbide inserts are most commonly used as replaceable cutting edges in various cutting tools. Their hardness and wear resistance make them ideal for machining a wide range of materials, including steel, cast iron, aluminum, and composites. Common cutting tool applications include:
- Turning: Used in lathes to remove material from rotating workpieces, creating cylindrical or conical shapes.
- Milling: Employed in milling machines to remove material from workpieces using rotary cutters.
- Drilling: Used in drill bits to create holes in various materials.
- Boring: Utilized to enlarge or finish existing holes with precision.
- Threading: Used to create threads on screws, bolts, and other fasteners.
- Grooving: Used to cut narrow channels or grooves in a workpiece.
- Parting: Used to separate a finished part from the stock material.
2. Wear Parts
Due to their exceptional wear resistance, tungsten carbide inserts are also used in applications where components are subjected to high levels of abrasion and wear. These include:
- Nozzles: Used in abrasive blasting and spraying applications to maintain consistent flow and particle size.
- Seals and Bearings: Employed in high-wear environments to provide long-lasting, reliable performance.
- Crusher Jaws and Hammers: Used in mining and aggregate processing to crush and grind hard materials.
- Wire Guides: Used in wire drawing and forming operations to guide the wire and prevent wear on the equipment.
- Extrusion Dies: Used in the extrusion of metals and plastics to shape the material and provide wear resistance.
3. Mining and Construction
Tungsten carbide inserts are essential in the mining and construction industries for their ability to withstand extreme conditions and abrasive materials. Key applications include:
- Drill Bits: Used in rock drilling and tunneling operations.
- Cutting Tools: Employed in road milling and asphalt cutting equipment.
- Wear Plates: Used in heavy machinery to protect against wear and abrasion.
- Tunnel Boring Machines (TBMs): Used as cutting tools in TBMs to excavate tunnels through rock and soil.
- Roadheaders: Used as cutting tools in roadheaders to excavate tunnels and underground mines.
4. Automotive Industry
In the automotive sector, tungsten carbide inserts are used in the manufacturing of engine components, brake systems, and other critical parts. Specific applications include:
- Cutting Tools: Used to machine engine blocks, cylinder heads, and other components.
- Brake Rotors: Used in turning brake rotors.
- Wear Parts: Employed in high-performance braking systems.
- Valve Seats: Used as valve seats in engines to provide wear resistance and maintain sealing performance.
- Fuel Injectors: Used as components in fuel injectors to provide wear resistance and ensure precise fuel delivery.
5. Other Industries
Tungsten carbide inserts find applications in numerous other industries, including:
- Aerospace: Used in the manufacturing of aircraft components due to their high strength-to-weight ratio and wear resistance.
- Electronics: Employed in the production of electronic components and circuit boards.
- Medical: Used in surgical instruments and dental tools for their precision and durability.
- Oil and Gas: Used in drilling and exploration equipment to withstand harsh conditions and abrasive materials.
- Food Processing: Used in cutting and grinding equipment to process food products.
Advantages of Tungsten Carbide Inserts
The widespread use of tungsten carbide inserts is attributed to their superior properties and performance compared to other materials. Key advantages include:
- High Hardness: Tungsten carbide is exceptionally hard, allowing it to cut and machine a wide range of materials, including hardened steels and superalloys.
- Excellent Wear Resistance: The high wear resistance of tungsten carbide inserts ensures a long tool life, reducing downtime and replacement costs.
- High-Temperature Performance: Tungsten carbide maintains its hardness and strength at high temperatures, making it suitable for high-speed cutting operations.
- Chemical Inertness: Tungsten carbide is chemically inert, making it resistant to corrosion and degradation in harsh environments.
- Versatility: Tungsten carbide inserts can be manufactured in various shapes and sizes to suit a wide range of applications.
- High Strength: Tungsten carbide has high compressive strength, allowing it to withstand high cutting forces and pressures.
- Dimensional Stability: Tungsten carbide exhibits excellent dimensional stability, ensuring that the inserts maintain their shape and size under varying conditions.
Conclusion
The manufacturing of tungsten carbide inserts is a complex and precise process involving powder preparation, mixing, shaping, sintering, and optional steps like HIP and coating. Each stage is critical to achieving the desired properties of hardness, wear resistance, and toughness. These inserts are indispensable in various industries, including metalworking, mining, and automotive, due to their superior performance in cutting tools and wear parts. The ongoing advancements in manufacturing techniques continue to enhance the performance and broaden the applications of tungsten carbide inserts. Future trends include the development of new coating materials, improved sintering processes, and the use of additive manufacturing techniques to create more complex insert geometries.
FAQ About Tungsten Carbide Inserts
1. What are tungsten carbide inserts made of?
Tungsten carbide inserts are primarily made from tungsten carbide powder and cobalt. Additional carbides like titanium carbide or tantalum carbide may be added to enhance specific properties. The specific composition varies depending on the intended application of the insert, with different grades offering different combinations of hardness, toughness, and wear resistance.
2. How are tungsten carbide inserts shaped?
Tungsten carbide inserts are shaped using several methods, including pressing, extrusion, or injection molding. The powder mixture is compressed under high pressure into a die with the desired shape. The choice of shaping method depends on the complexity of the insert geometry and the production volume.
3. What is sintering, and why is it important?
Sintering is a crucial step in the manufacturing process where the shaped inserts are heated to a temperature just below the melting point of the metallic binder. This causes the binder to melt and bond the tungsten carbide particles together, creating a solid structure. Sintering is essential for achieving the desired density, strength, and hardness of the insert.
4. What is the purpose of coating tungsten carbide inserts?
Coating enhances the insert's wear resistance and thermal barrier properties. It helps to extend the life of the insert and improve its performance in demanding applications. Different coating materials are used to provide specific benefits, such as increased hardness, reduced friction, or improved resistance to chemical attack.
5. In what applications are tungsten carbide inserts commonly used?
Tungsten carbide inserts are commonly used in cutting tools for boring, drilling, milling, and turning. They are also used in wear parts, mining and construction equipment, and automotive components. Their versatility and high-performance make them suitable for a wide range of applications across various industries.
