Tungsten carbide and titanium are two widely recognized materials in the industrial and manufacturing worlds, yet they are fundamentally different in their chemical composition, physical properties, and applications. Many people often confuse tungsten carbide with titanium or titanium-based materials because of their similar-sounding names or because both are used in high-performance environments. In this comprehensive article, we will explore what tungsten carbide really is, clarify whether it is a type of titanium, and provide detailed comparisons with titanium and titanium carbide. Along the way, we will also examine their manufacturing processes, properties, and typical uses, supported by illustrative images to deepen your understanding.
Understanding Tungsten Carbide
What Is Tungsten Carbide?
Tungsten carbide is a chemical compound consisting of tungsten (W) and carbon (C) atoms in a one-to-one ratio, represented by the chemical formula WC. It is a dense, grayish material that is classified as a ceramic-metal composite, often called a cermet when combined with metallic binders such as cobalt or nickel. This combination provides tungsten carbide with a unique blend of ceramic hardness and metal toughness, making it one of the hardest and most durable materials available for industrial use.
Unlike pure metals, tungsten carbide is not ductile or malleable but exhibits outstanding hardness and resistance to wear, abrasion, and heat. These properties make it invaluable for cutting tools, mining equipment, and wear-resistant parts.
Physical and Chemical Properties of Tungsten Carbide
- Hardness: Tungsten carbide ranks approximately 9 on the Mohs hardness scale, placing it just below diamond, which is the hardest natural material.
- Melting Point: It has an extremely high melting point of about 2,870°C (5,200°F), allowing it to maintain strength and stability at elevated temperatures.
- Density: Tungsten carbide is very dense, with a density around 15.6 g/cm³, roughly twice that of steel.
- Young's Modulus: The material exhibits high stiffness, with a Young's modulus ranging between 530 and 700 GPa.
- Thermal Conductivity: Its thermal conductivity is approximately 110 W/(m·K), enabling efficient heat dissipation during cutting or drilling operations.
- Corrosion Resistance: Tungsten carbide resists corrosion from many acids and oxidation at room temperature but can oxidize at temperatures above 500°C.
- Appearance: In powdered form, tungsten carbide appears as a fine gray powder. When sintered into solid shapes, it takes on a metallic gray luster.
Manufacturing Process of Tungsten Carbide
The production of tungsten carbide involves several critical steps:
1. Powder Preparation: Tungsten powder is mixed with carbon black in precise proportions.
2. Carburization: The mixture is heated in a controlled environment at temperatures between 1300°C and 1600°C to form tungsten carbide powder.
3. Mixing with Binder: The WC powder is blended with a metallic binder, typically cobalt or nickel, which enhances toughness and impact resistance.
4. Compaction: The powder mixture is pressed into the desired shape using high-pressure compaction methods.
5. Sintering: The compacted shape is sintered at high temperatures (around 1400°C) in a vacuum or inert atmosphere to fuse the particles into a dense, solid piece.
6. Finishing: The sintered parts are ground, polished, or coated depending on their intended use.
Applications of Tungsten Carbide
Tungsten carbide's unique combination of hardness and toughness makes it indispensable in many industries:

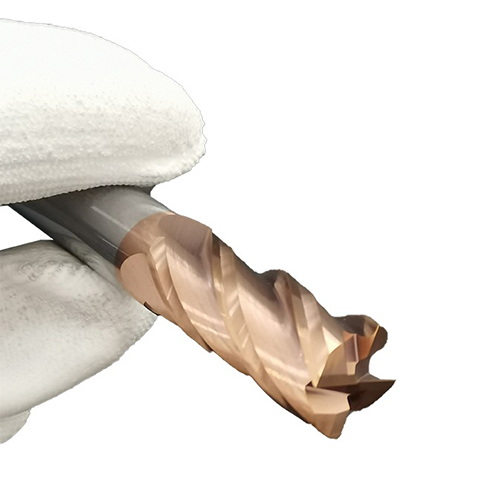

- Cutting Tools: Drill bits, milling cutters, saw blades, and lathe tools benefit from tungsten carbide's ability to maintain sharpness and resist wear.
- Mining and Drilling: Components such as drill bits, mining picks, and nozzles use tungsten carbide to withstand abrasive environments.
- Wear-Resistant Coatings: Tungsten carbide coatings extend the life of machine parts exposed to friction.
- Jewelry: Tungsten carbide rings and watches are popular for their scratch resistance and durability.
- Armor-Piercing Ammunition: Its hardness allows tungsten carbide to penetrate armored targets.
- Industrial Machinery: Bearings, valve seats, and wear plates are often made from tungsten carbide to reduce downtime and maintenance.
What Is Titanium? How Does It Differ from Tungsten Carbide?
Titanium is a pure chemical element with the symbol Ti and atomic number 22. It is a transition metal known for its excellent strength-to-weight ratio, corrosion resistance, and biocompatibility. Titanium is widely used in aerospace, medical implants, and high-performance engineering applications.
Key Characteristics of Titanium
- Lightweight: Titanium has a density of about 4.5 g/cm³, significantly lighter than tungsten carbide.
- Strength: It has a tensile strength comparable to some steels but at a fraction of the weight.
- Corrosion Resistance: Titanium naturally forms a protective oxide layer that resists corrosion in many environments, including seawater and bodily fluids.
- Ductility: Unlike tungsten carbide, titanium is ductile and can be formed into complex shapes.
- Melting Point: Titanium melts at approximately 1,668°C, much lower than tungsten carbide.
Differences Between Titanium and Tungsten Carbide
| Property | Tungsten Carbide | Titanium |
| Material Type | Ceramic-metal composite | Pure metal |
| Hardness (Mohs) | 9 | 6 |
| Density (g/cm³) | 15.6 | 4.5 |
| Melting Point (°C) | 2,870 | 1,668 |
| Typical Uses | Cutting tools, abrasives | Aerospace, medical implants |
| Appearance | Gray metallic powder/solid | Silvery-white metal |
Titanium's lower density and excellent corrosion resistance make it ideal for applications where weight savings and durability are critical, such as aircraft frames and medical devices. Tungsten carbide, with its superior hardness and wear resistance, is preferred for cutting and abrasive applications.
Is Tungsten Carbide a Type of Titanium?
The short answer is no. Tungsten carbide is not a type of titanium. They are chemically and structurally distinct materials:
- Tungsten carbide is a compound formed by tungsten and carbon atoms.
- Titanium is a pure metallic element.
While both materials are used in demanding environments, their properties and applications differ significantly. Tungsten carbide is prized for hardness and wear resistance, whereas titanium is valued for its light weight and corrosion resistance.
Comparing Tungsten Carbide and Titanium Carbide
Titanium carbide (TiC) is another hard ceramic compound, similar in some respects to tungsten carbide but with distinct characteristics.
Titanium Carbide Overview
- Chemical Formula: TiC
- Hardness: TiC is slightly harder than tungsten carbide, with a Mohs hardness of about 9 to 9.5.
- Density: Approximately 4.93 g/cm³, much lighter than tungsten carbide.
- Melting Point: Around 3,160°C, higher than tungsten carbide.
- Crystal Structure: Face-centered cubic, similar to sodium chloride.
Performance Comparison Between WC and TiC
| Property | Tungsten Carbide (WC) | Titanium Carbide (TiC) |
| Hardness (GPa) | 18–22 | 28–35 |
| Toughness | High | Lower |
| Wear Resistance | Excellent | Superior at high temperatures |
| Density (g/cm³) | 15.63 | 4.93 |
| Melting Point (°C) | 2,870 | 3,160 |
Titanium carbide is harder and lighter but less tough than tungsten carbide. TiC performs better at elevated temperatures, making it suitable for specialized cutting tools and coatings in high-heat environments. Tungsten carbide's higher toughness makes it more resistant to impact and fracture, which is critical in heavy-duty machining and mining.
Additional Insights: Tungsten Carbide vs. Titanium Alloys
While pure titanium is widely used, titanium alloys are often employed to enhance mechanical properties. Common alloys include Ti-6Al-4V (titanium with 6% aluminum and 4% vanadium), which increases strength and heat resistance.
Why Choose Titanium Alloys?
- High Strength-to-Weight Ratio: Essential for aerospace and automotive industries.
- Corrosion Resistance: Suitable for marine and chemical environments.
- Biocompatibility: Used for implants and prosthetics.
- Fabrication: Can be machined, forged, and welded.
However, titanium alloys generally cannot match tungsten carbide's hardness or wear resistance, limiting their use in cutting and abrasive applications.
Conclusion
Tungsten carbide is a highly durable and hard chemical compound made from tungsten and carbon, prized for its exceptional hardness, wear resistance, and thermal stability. It is not a type of titanium; rather, it is a ceramic-metal composite distinctly different from titanium metal. Titanium is a lightweight, corrosion-resistant metal widely used in aerospace, medical, and structural applications. Titanium carbide, although similar in name, is a separate ceramic compound with its own unique properties, including higher hardness but lower toughness compared to tungsten carbide.
Understanding these materials' differences is crucial for engineers, manufacturers, and consumers to select the right material for specific applications-whether it be cutting tools, aerospace components, or jewelry. Tungsten carbide excels in hardness and wear resistance, titanium in light weight and corrosion resistance, and titanium carbide in high-temperature hardness.
Frequently Asked Questions (FAQ)
1. What is tungsten carbide made of?
Tungsten carbide is made by combining tungsten and carbon atoms in a 1:1 ratio, often mixed with a metallic binder like cobalt to improve toughness and durability.
2. Is tungsten carbide the same as titanium carbide?
No, tungsten carbide (WC) and titanium carbide (TiC) are different compounds with distinct chemical compositions and properties, although both are hard ceramic materials.
3. Can tungsten carbide be used in jewelry?
Yes, tungsten carbide is popular in jewelry such as rings and watches because of its exceptional hardness and scratch resistance.
4. Why is titanium used in aerospace instead of tungsten carbide?
Titanium is much lighter than tungsten carbide and offers excellent corrosion resistance and strength, making it ideal for aerospace components where weight savings are critical.
5. How is tungsten carbide manufactured?
Tungsten carbide is produced by mixing tungsten powder with carbon black, heating to form WC powder, then compacting and sintering with a metallic binder to create solid parts.
