Tungsten carbide dies are renowned for their exceptional hardness and wear resistance, making them a crucial component in various industrial processes, such as wire drawing, cold heading, and extrusion. This article will delve into the process of manufacturing tungsten carbide dies, highlighting the materials, techniques, and applications involved.

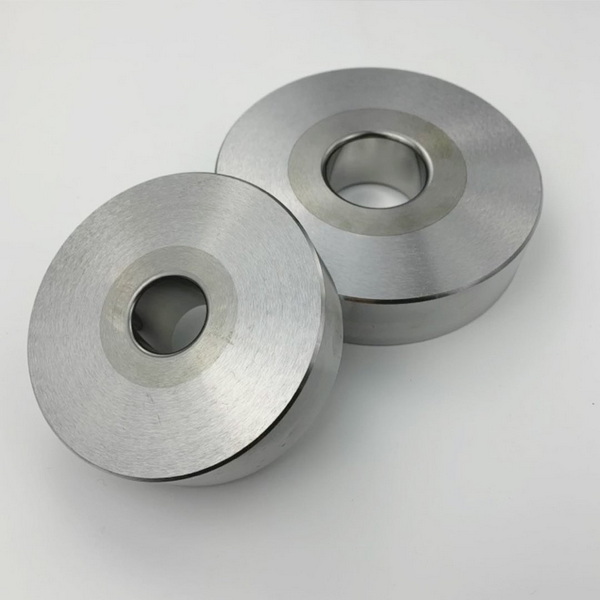

Introduction to Tungsten Carbide Dies
Tungsten carbide is a composite material consisting of tungsten and carbon, known for its remarkable durability and resistance to wear. These properties make tungsten carbide dies ideal for high-precision applications where longevity and accuracy are paramount.
Materials Used
The primary components of tungsten carbide dies include:
- Tungsten Carbide Powder: This is the core material, providing the die with its hardness and wear resistance.
- Metallic Binders: Typically cobalt, but sometimes nickel or other metals, these binders help hold the tungsten carbide particles together, enhancing the die's strength and toughness.
Manufacturing Process
The manufacturing process involves several key steps:
1. Mixing: Tungsten carbide powder is mixed with metallic binders to create a uniform blend. This step is critical as it ensures that the final product has consistent properties throughout.
2. Compaction: The mixture is then compacted under high pressure to form the desired shape. This can be achieved through various methods, including cold isostatic pressing or uniaxial pressing.
3. Sintering: The compacted form is subjected to high temperatures in a furnace to fuse the particles together, creating a solid, dense structure. Sintering is typically performed in a vacuum or inert atmosphere to prevent oxidation.
Applications of Tungsten Carbide Dies
Tungsten carbide dies are versatile and find applications across various industries:
- Wire Drawing: Used to reduce the diameter of wires with precision and durability. The hardness of tungsten carbide ensures that the wire maintains its shape and size consistently.
- Cold Heading: Employed in cold forming processes to shape metal parts accurately. Tungsten carbide dies are ideal for this application due to their ability to withstand high pressures without deforming.
- Extrusion: Utilized for extruding metals and plastics with high precision. The wear resistance of tungsten carbide dies ensures that they can handle the high friction involved in extrusion processes.
Challenges and Solutions
While tungsten carbide dies offer many advantages, they also present challenges such as brittleness and high initial cost. To address these issues, manufacturers employ strategic design and engineering techniques to mitigate brittleness, and the extended lifespan of these dies often justifies the initial investment.
Strategic Design
Manufacturers use advanced design techniques to ensure that tungsten carbide dies are engineered to withstand the rigors of industrial processes while minimizing brittleness. This includes optimizing the shape and structure of the die to distribute stress evenly and reduce the risk of cracking.
Cost Justification
Although tungsten carbide dies are more expensive than alternatives, their durability and performance often lead to cost savings in the long term. They require less frequent replacement and maintenance, which can significantly reduce downtime and operational costs.
Precision Grinding Services
To enhance the performance and longevity of tungsten carbide dies, precision grinding services are available. These services ensure that the dies maintain their precision and durability over time.
Benefits of Grinding
- Longer Tool Life: Grinding extends the lifespan of tungsten carbide dies by removing worn surfaces and restoring their original dimensions.
- Improved Quality: Enhances the quality of the products manufactured using these dies by maintaining precise dimensions and surface finish.
- Reduced Downtime: Minimizes production interruptions by maintaining optimal tool performance and reducing the need for frequent replacements.
Advanced Grinding Techniques
Modern grinding techniques often involve the use of advanced machinery and software to achieve precise control over the grinding process. This includes the use of CNC (Computer Numerical Control) machines that can accurately replicate complex shapes and dimensions.
Quality Control and Testing
Ensuring the quality of tungsten carbide dies is crucial for their performance and longevity. Manufacturers conduct rigorous testing to verify the hardness, density, and surface finish of the dies.
Testing Methods
- Hardness Testing: Typically performed using methods like Rockwell hardness testing to ensure that the die meets the required hardness specifications.
- Density Testing: Conducted to verify that the die has achieved the desired density, which is critical for its performance and durability.
- Surface Finish Testing: Used to ensure that the die's surface is smooth and even, which affects the quality of the products manufactured.
Environmental Considerations
The production of tungsten carbide dies involves processes that can have environmental impacts, such as energy consumption and waste generation. Manufacturers are increasingly adopting sustainable practices to minimize these effects.
Sustainable Practices
- Energy Efficiency: Implementing energy-efficient equipment and processes to reduce energy consumption.
- Waste Management: Implementing recycling programs for tungsten carbide scrap and ensuring proper disposal of hazardous materials.
Conclusion
Tungsten carbide dies are indispensable in modern manufacturing due to their exceptional hardness and wear resistance. Understanding the manufacturing process and applications of these dies is crucial for industries seeking high precision and durability. By addressing challenges through strategic design and utilizing precision grinding services, manufacturers can maximize the benefits of tungsten carbide dies.
Frequently Asked Questions
1. What are the primary materials used in making tungsten carbide dies?
Tungsten carbide dies are primarily made from tungsten carbide powder mixed with metallic binders such as cobalt or nickel.
2. What is the purpose of sintering in the manufacturing process?
Sintering is used to fuse the tungsten carbide particles together under high temperatures, creating a solid and dense structure.
3. What are some common applications of tungsten carbide dies?
Tungsten carbide dies are commonly used in wire drawing, cold heading, and extrusion processes due to their precision and durability.
4. How do manufacturers address the brittleness of tungsten carbide dies?
Manufacturers address brittleness through strategic design and engineering techniques that enhance the die's durability while minimizing its brittleness.
5. What are the benefits of precision grinding for tungsten carbide dies?
Precision grinding extends the tool life of tungsten carbide dies, improves product quality, and reduces production downtime.
