Drilling through tungsten carbide, one of the hardest materials known, presents unique challenges that require specialized techniques and tools. This article will guide you through the process of drilling tungsten carbide, covering everything from the necessary tools and techniques to safety precautions and maintenance tips.
Understanding Tungsten Carbide
Tungsten carbide is a compound made from tungsten and carbon, known for its incredible hardness and wear resistance. It is commonly used in industrial applications such as cutting tools, mining machinery, and jewelry. Due to its toughness, traditional drill bits are ineffective against this material. Therefore, specialized equipment is essential for successful drilling.
Tungsten carbide has a hardness rating of 8.5 to 9 on the Mohs scale, making it significantly harder than steel or titanium. This property makes it highly desirable for applications requiring durability and longevity. However, it also means that drilling into tungsten carbide requires careful planning and execution.
Applications of Tungsten Carbide
Before diving into the drilling process, it's essential to understand where tungsten carbide is typically used:

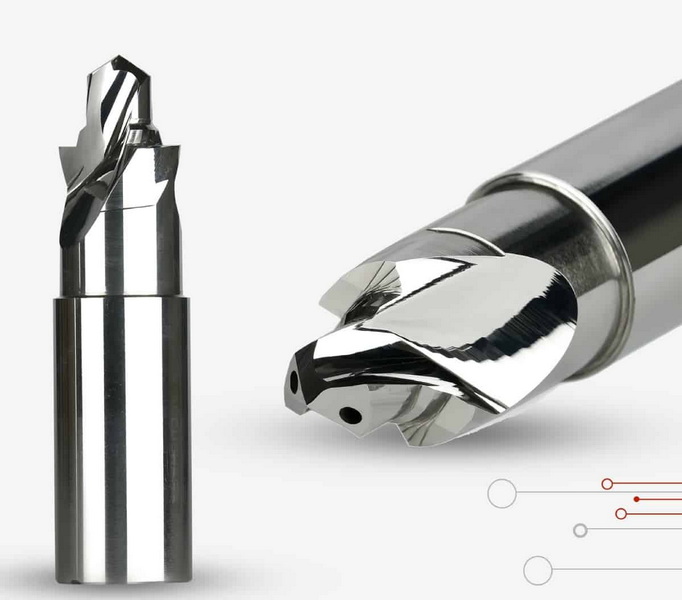

- Cutting Tools: Tungsten carbide is widely used in manufacturing cutting tools such as drill bits, saw blades, and milling cutters due to its hardness.
- Mining and Drilling Equipment: Its wear resistance makes it ideal for mining bits and drilling equipment that must withstand harsh conditions.
- Jewelry: Tungsten carbide is popular in the jewelry industry for making rings and other accessories due to its scratch resistance and aesthetic appeal.
- Industrial Machinery: Many components in heavy machinery are made from tungsten carbide to improve performance and longevity.
Tools Required for Drilling Tungsten Carbide
Before starting the drilling process, gather the following tools:
- Diamond Drill Bits: These are specifically designed for hard materials like tungsten carbide. They come in various shapes and sizes, including core bits and hole saws.
- High-Speed Rotary Tool or Drill Press: A powerful rotary tool or a drill press provides the necessary speed and torque to penetrate hard materials.
- Cooling Lubricant: Water or specialized cutting fluid helps cool the drill bit and reduces friction during drilling.
- Clamps: To secure the tungsten carbide piece in place during drilling.
- Safety Gear: Protective eyewear, gloves, and a dust mask to protect against debris and dust.
- Measuring Tools: Calipers or rulers to ensure precise measurements when marking drill points.
- Center Punch: To create an indentation at the drill point, helping guide the drill bit accurately.
Step-by-Step Guide to Drilling Tungsten Carbide
1. Preparing Your Workspace
Ensure your workspace is clean and well-lit. Secure the tungsten carbide piece using clamps to prevent movement during drilling. A stable work surface will help maintain accuracy throughout the process.
2. Selecting the Right Drill Bit
Choose a diamond-coated drill bit suitable for the size of the hole you want to create. For larger holes, consider using a diamond hole saw. Ensure that the bit's diameter matches your requirements precisely; this will save time and effort later on.
3. Marking the Drill Point
Use a marker or a center punch to mark the spot where you want to drill. This helps guide the drill bit and prevents it from wandering. A well-defined point will lead to cleaner holes with less risk of error.
4. Setting Up Your Drill
If using a drill press, set it to a low speed (around 500 RPM) to start. If using a handheld rotary tool, ensure it is set at a similar speed. Lower speeds are crucial as they reduce heat buildup while allowing for better control over the drilling process.
5. Cooling During Drilling
Apply cooling lubricant to the drill bit before starting. This helps reduce heat buildup, which can damage both the bit and the material being drilled. Reapply lubricant periodically as needed during drilling; maintaining proper cooling is critical for success.
6. Starting the Drill
Begin drilling at a slight angle until the bit has penetrated the surface of the tungsten carbide. Once it has started biting into the material, adjust your angle to vertical. Starting at an angle helps create an initial groove that stabilizes the drill bit as you continue.
7. Maintaining Pressure and Speed
Apply consistent pressure while drilling but avoid excessive force that could break the bit. Periodically withdraw the bit to clear debris and allow for cooling. Keeping an eye on both pressure and speed will help ensure a smooth drilling experience without damaging your tools or workpiece.
8. Finishing Up
Once you have drilled through the material, carefully remove any debris from both the hole and the drill bit. Clean up your workspace afterward, ensuring that all sharp fragments are disposed of safely.
Tips for Successful Drilling
- Use a steady hand to maintain control over your drill.
- Regularly check your drill bit for wear; replace it if necessary.
- If you encounter resistance or if the drill bit begins to overheat, stop drilling immediately to allow cooling.
- Consider using multiple bits if you're working on larger projects where several holes need to be drilled; this can save time by allowing you to switch out worn bits quickly.
- Practice on scrap pieces of tungsten carbide if available; this helps build confidence before tackling your main project.
Safety Precautions
- Always wear protective eyewear when drilling.
- Ensure proper ventilation in your workspace.
- Keep hands away from moving parts during operation.
- Dispose of any debris safely to avoid injury.
- Be cautious of sharp edges created by drilling; they can cause cuts if not handled properly.
- Avoid wearing loose clothing or accessories that could get caught in moving parts during operation.
Maintenance of Tools
After completing your project:
- Clean your drill bits thoroughly with water or cleaning solution.
- Store them in a dry place away from moisture.
- Inspect for any signs of wear or damage before future use.
- Regular maintenance extends tool life significantly; consider sharpening diamond bits regularly if applicable.
Common Mistakes When Drilling Tungsten Carbide
Even experienced users can make mistakes when working with such tough materials:
- Using Incorrect Speed: Too high a speed can lead to overheating while too low can cause excessive pressure on the bit.
- Neglecting Cooling: Failing to use adequate lubrication can result in broken bits or damaged workpieces due to heat buildup.
- Inadequate Marking: Not marking your drill points properly can lead to misaligned holes which can affect overall project quality.
Troubleshooting Drilling Issues
If you encounter problems while drilling:
1. Bit Breakage: If your diamond bit breaks frequently, check if you're applying too much pressure or if it's worn out beyond usability.
2. Poor Hole Quality: If holes are ragged or uneven, ensure your marking is precise and that you're maintaining control throughout drilling.
3. Overheating Bits: Adjust your speed settings lower or increase lubrication application frequency during use.
Conclusion
Drilling tungsten carbide requires patience, precision, and proper tools. By following this guide, you can successfully create holes in this tough material without damaging your equipment or compromising safety. With practice and adherence to best practices outlined here, you'll find that working with tungsten carbide becomes easier over time.
FAQs
1. Can I use regular drill bits on tungsten carbide?
No, regular drill bits will not work on tungsten carbide due to its hardness. You must use diamond-coated or carbide-tipped bits specifically designed for this material.
2. What is the best speed for drilling tungsten carbide?
A speed of around 500 RPM is recommended when starting with diamond bits; however, this may vary based on specific equipment and bit size.
3. How do I prevent my drill bits from overheating?
Using cooling lubricants like water or cutting fluid can help dissipate heat during drilling and prolong the life of your bits.
4. Is it necessary to secure tungsten carbide while drilling?
Yes, securing it with clamps is crucial as it prevents movement that could lead to inaccurate holes or damage to both the workpiece and tools.
5. What should I do if my drill bit breaks?
Stop all operations immediately; carefully remove any broken pieces using pliers or tweezers while wearing protective gear.
