Tungsten carbide ceramic is a material that stands at the crossroads of metallurgy and advanced ceramics, combining the extreme hardness and wear resistance of ceramics with the toughness and resilience of metals. Its unique properties have made it indispensable in industries ranging from manufacturing and mining to medicine and jewelry. This article delves deep into the world of tungsten carbide ceramic, exploring its composition, properties, manufacturing processes, applications, advancements, and how it compares to other advanced materials.
Introduction to Tungsten Carbide Ceramic
Tungsten carbide ceramic is not just a single material but a family of engineered compounds formed by combining tungsten and carbon. The result is a substance that is nearly as hard as diamond and capable of withstanding extreme conditions. Often referred to as a metal/ceramic hybrid, tungsten carbide ceramic is widely used in environments where durability, strength, and wear resistance are paramount.
Composition and Structure
Tungsten carbide (chemical formula: WC) consists of equal parts tungsten and carbon atoms arranged in a hexagonal crystal structure. In its most common industrial form, it contains approximately 94% tungsten and 6% carbon by weight. To enhance toughness, a metallic binder-typically cobalt or nickel-is added, creating what is known as "cemented carbide" or "cermet" (ceramic-metal composite).
Key Points:
- Base Elements: Tungsten (W) and Carbon (C)
- Crystal Structure: Hexagonal (α-WC) and, at high temperatures, cubic (β-WC)
- Binder: Usually cobalt or nickel, which improves toughness and processability
Key Properties of Tungsten Carbide Ceramic
Tungsten carbide ceramic is celebrated for its exceptional mechanical and physical properties, which include:
- Extreme Hardness: Ranks 9.0–9.5 on the Mohs scale, just below diamond.
- High Density: Among the densest engineering ceramics, with a density of around 15 g/cm³.
- Wear Resistance: Exceptional resistance to abrasion, making it ideal for cutting and grinding tools.
- Thermal Stability: High melting point (2,870°C) and excellent performance at elevated temperatures.
- Corrosion Resistance: Resistant to most acids and corrosive environments, except certain strong acid mixtures at high temperatures.
- Fracture Toughness: Higher than most ceramics, providing better resistance to cracking under stress.
- Electrical Conductivity: Low resistivity, making it suitable for some electrical applications.
Manufacturing Process
The creation of tungsten carbide ceramic involves several precise steps:
1. Powder Preparation: Fine tungsten and carbon powders are mixed in stoichiometric proportions.
2. Reaction: The mixture is heated in a controlled environment, allowing tungsten and carbon to react and form tungsten carbide particles.
3. Binder Addition: A metallic binder (often cobalt) is introduced to the powder.
4. Compaction: The mixture is pressed into the desired shape using high pressure.
5. Sintering: The compacted shape is heated to a temperature below the melting point of tungsten carbide, causing the particles to bond together and form a dense, solid structure.
This process results in a material that combines the best qualities of ceramics and metals, often referred to as a cermet.
Applications Across Industries
Tungsten carbide ceramic's unique combination of hardness, toughness, and wear resistance makes it a preferred material in a variety of demanding applications.
Manufacturing and Machining

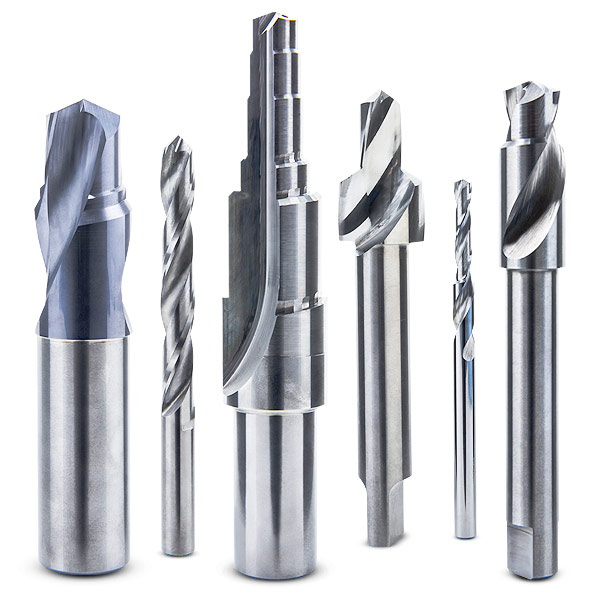

- Cutting Tools: Drill bits, milling cutters, and saw blades utilize tungsten carbide for their ability to retain sharpness and resist wear.
- Grinding and Polishing: Abrasive wheels and disks for polishing hard materials.
Mining and Oil & Gas
- Drill Bits and Wear Parts: Used in drilling equipment and mining machinery due to its resistance to abrasion and impact.
Automotive and Aerospace
- Engine Components: Valves, tappets, and other parts exposed to high stress and wear.
- Turbine Blades: Coatings for improved durability and thermal resistance.
Medical Devices
- Surgical Tools: Scalpels, scissors, and other instruments requiring precision and longevity.
Jewelry
- Rings and Watch Bands: Valued for their scratch resistance and metallic luster.
Other Uses
- Ballpoint Pens: The rolling balls are often made from tungsten carbide.
- Sports Equipment: Spikes for athletic shoes and tire studs for winter vehicles.
Comparison: Tungsten Carbide Ceramic vs. Other Ceramics
| Feature | Tungsten Carbide Ceramic | Traditional Ceramics (Alumina, Zirconia, Silicon Nitride) |
| Composition | Tungsten + Carbon (+Binder) | Aluminum, Zirconium, Silicon, Oxygen, etc. |
| Hardness | Extremely high | High, but generally lower than tungsten carbide |
| Wear Resistance | Superior | Good, but less than tungsten carbide |
| Thermal Conductivity | Moderate to high | Often higher (especially silicon nitride/alumina) |
| Fracture Toughness | Higher (with binder) | Lower, more brittle |
| Corrosion Resistance | Good | Excellent (especially in aggressive environments) |
| Density | Very high | Lower |
| Electrical Conductivity | Good | Usually insulating |
Advantages and Limitations
Advantages
- Outstanding durability and wear resistance
- High strength and toughness
- Excellent performance at high temperatures
- Versatility in applications
- Cost-effective over time due to long service life
Limitations
- Brittleness (without binder)
- Challenging to machine-requires diamond tools
- Heavy compared to other ceramics
- Susceptible to corrosion in certain acid mixtures
Maintenance and Care
Although tungsten carbide ceramic is incredibly durable, proper care can further extend its lifespan:
- Avoid exposure to strong acids (HF/HNO₃ mixtures) at high temperatures.
- Use appropriate cleaning agents for jewelry and surgical tools.
- Inspect cutting tools regularly for micro-cracks or chipping.
- Store components in dry, clean environments to prevent oxidation.
Recent Advancements in Tungsten Carbide Ceramic
Recent research and development efforts have focused on enhancing the performance of tungsten carbide ceramics by improving their toughness and resistance to thermal shock. Innovations include the development of nano-structured tungsten carbide composites, which exhibit superior mechanical properties due to their refined grain size. Additionally, researchers are exploring alternative binders to cobalt, such as nickel and iron-based alloys, to reduce costs and improve environmental sustainability.
Advancements in powder metallurgy have enabled the production of finer and more uniform tungsten carbide particles, resulting in improved material consistency and performance. The use of advanced sintering techniques, such as spark plasma sintering, allows for faster densification and better control over the microstructure, leading to materials with enhanced hardness and toughness.
Researchers are also investigating surface engineering techniques, such as coating tungsten carbide ceramics with thin protective layers, to further boost corrosion and oxidation resistance. These coatings can extend the service life of components in harsh environments, such as chemical processing plants and deep-sea drilling operations.
Future Trends and Potential Developments
The future of tungsten carbide ceramic technology looks promising with ongoing advancements in additive manufacturing techniques, such as 3D printing, which allow for more complex shapes and customized components. These methods enable manufacturers to produce intricate geometries that were previously impossible or cost-prohibitive with traditional machining.
Furthermore, the integration of tungsten carbide ceramics with other advanced materials, like graphene and carbon nanotubes, is expected to create hybrid composites with unprecedented strength and durability. These hybrid materials could offer improved electrical and thermal conductivity, opening the door to new applications in electronics, thermal management systems, and next-generation aerospace components.
Efforts to make tungsten carbide ceramics more environmentally friendly are also underway. By developing recycling processes for used carbide tools and exploring less toxic binders, the industry is moving toward more sustainable production and end-of-life management.
These developments could open new applications in electronics, aerospace, and energy sectors, where materials are required to perform under extreme conditions and deliver long-term reliability.
Conclusion
Tungsten carbide ceramic stands as a testament to the power of material science, offering a blend of properties that few other materials can match. Its unique combination of hardness, toughness, and resistance to wear and corrosion has revolutionized industries from manufacturing to medicine. As technology advances, the applications of tungsten carbide ceramic will only continue to grow, cementing its place as one of the most valuable engineered materials in the modern world. With ongoing research driving new innovations in material composition, processing, and sustainability, tungsten carbide ceramic is poised to remain at the forefront of high-performance materials for decades to come.
FAQ: Frequently Asked Questions
1. What distinguishes tungsten carbide ceramic from regular ceramics?
Tungsten carbide ceramic is a composite material that combines the hardness of ceramics with the toughness of metals, thanks to the addition of metallic binders such as cobalt. This makes it much more wear-resistant and durable than traditional ceramics, which are often more brittle.
2. How is tungsten carbide ceramic manufactured?
The manufacturing process involves mixing fine tungsten and carbon powders, reacting them at high temperatures to form tungsten carbide, adding a metallic binder, compacting the mixture, and then sintering it to create a dense, solid component.
3. What are the main applications of tungsten carbide ceramic?
Tungsten carbide ceramic is widely used in cutting tools, mining equipment, automotive and aerospace components, medical instruments, jewelry, and even in everyday items like ballpoint pen tips.
4. How does tungsten carbide ceramic compare to diamond?
While diamond is harder, tungsten carbide offers a superior balance of hardness and toughness, making it less brittle and more suitable for industrial applications where impact resistance is crucial.
5. Can tungsten carbide ceramic corrode or rust?
Tungsten carbide ceramic is highly resistant to corrosion in most environments but can be attacked by specific acid mixtures at elevated temperatures. The presence of a metallic binder can also influence its corrosion resistance.
