Johnson Carbide step tools are at the forefront of precision machining, delivering unmatched performance across a spectrum of industrial applications. From aerospace manufacturing to mining, these specialized tools are engineered to meet the most demanding requirements, ensuring efficiency, accuracy, and durability. This comprehensive guide explores the design, uses, advantages, and maintenance of Johnson Carbide step tools, offering insights into why they are a preferred choice for professionals worldwide.
Introduction to Johnson Carbide Step Tools
Johnson Carbide Products Inc. has been a leader in the development and production of solid carbide cutting tools since 1953. Their step tools, designed for application-specific challenges, are renowned for their precision, durability, and adaptability across diverse industries.
The Science Behind Carbide Tools
Carbide tools are crafted from tungsten carbide, a compound known for exceptional hardness and resistance to wear. By mixing tungsten carbide powder with a metallic binder (usually cobalt) and sintering at high temperatures, Johnson Carbide produces tools that retain sharp edges and withstand extreme conditions far better than traditional high-speed steel (HSS) tools.
Key properties:
- High hardness and wear resistance
- Ability to withstand high temperatures
- Extended tool life and reduced downtime
The Metallurgy Advantage
Tungsten carbide's microstructure, characterized by fine grains and a strong binder phase, ensures that step tools can endure the rigors of high-speed machining, heavy loads, and abrasive environments. The result is a tool that maintains its geometry and sharpness, even after prolonged use in challenging conditions.

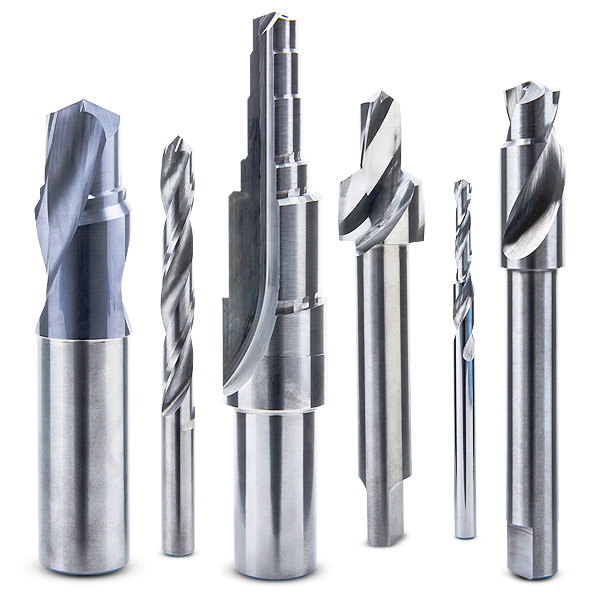

Design and Features of Johnson Carbide Step Tools
Johnson Carbide step tools are engineered for versatility and precision. Their unique "step" design allows for the creation of multiple hole diameters or profiles in a single operation.
Notable features include:
- Diameters ranging from 1/16″ to 1.50″
- Coolant-fed or non-coolant-fed options
- Straight or spiral flutes
- High-performance geometries for specific applications
- Multiple steps, radius, form, and angle transitions
- Tight diameter and critical step length tolerances
- In-process computerized inspection for quality control
- Re-sharpening and re-coating services
Advanced Coatings
Johnson Carbide step tools often feature advanced coatings such as TiAlN (Titanium Aluminum Nitride) or DLC (Diamond-Like Carbon), which further enhance wear resistance, reduce friction, and allow for higher cutting speeds. These coatings are especially beneficial when machining tough materials like stainless steel, titanium, or high-temperature alloys.
Key Industrial Applications
Johnson Carbide step tools are integral to a variety of sectors, each with unique demands.
Aerospace and Defense
- Precision machining of engine components and structural elements
- High durability and accuracy are critical for safety and performance
- Used for both ferrous and non-ferrous materials
In aerospace, step tools are used for drilling and profiling turbine blades, landing gear components, and fuselage assemblies. The ability to maintain tight tolerances is crucial for the integrity and performance of aircraft parts.
Automotive Manufacturing
- Machining of engine blocks, transmission parts, and critical assemblies
- Step tools enable multi-diameter drilling and profiling in a single pass
- Enhances production speed and consistency
Automotive manufacturers rely on step tools to produce high-precision bores for pistons, camshafts, and other engine components. The efficiency of step drilling reduces cycle times and ensures consistent quality across mass production runs.
Energy, Mining, and Drilling
- Used in drilling and cutting operations for oil & gas, mining, and geothermal applications
- Withstands abrasive environments and high mechanical stresses
- Step drills are vital for creating stepped bores in mining equipment
In mining and energy sectors, the robustness of Johnson Carbide step tools translates to fewer tool changes and less downtime, which is critical for operations where every minute counts.
Medical Device Fabrication
- Production of surgical instruments, implants, and other precision devices
- High-precision step tools ensure sterility and accuracy in medical components
Medical device manufacturers depend on carbide step tools for creating intricate features in surgical tools and implants. The biocompatibility and surface finish achieved with carbide tools are essential for meeting stringent regulatory standards.
Construction and Building Applications
- Drilling and profiling in steel frameworks, concrete reinforcements, and prefabricated modules
- Step tools provide clean, burr-free holes and smooth transitions between diameters
In construction, step tools are used for preparing holes for fasteners, anchors, and utility conduits, ensuring that installations are secure and meet structural requirements.
Electronics and Precision Engineering
- Used for micro-drilling and profiling in printed circuit boards (PCBs) and semiconductor components
- Enables the creation of complex, multi-diameter holes in a single operation
The electronics industry requires tools that can deliver micron-level accuracy. Johnson Carbide step tools are ideal for these applications, supporting the miniaturization of electronic devices.
Tool and Die Making
- Essential for creating dies, molds, and custom tooling with complex geometries
- Step tools allow for the efficient production of multi-level cavities and profiles
Tool and die makers utilize step tools to streamline the manufacturing of molds for plastics, metals, and composites, reducing lead times and improving repeatability.
Advantages of Using Johnson Carbide Step Tools
1. Superior Durability
- Carbide composition offers longer tool life, reducing replacement frequency and downtime.
2. Precision and Consistency
- Tight tolerances and advanced geometries ensure high-quality, repeatable results.
3. Versatility
- Multi-step design allows for drilling, profiling, and finishing in a single operation, streamlining workflows.
4. Reduced Costs
- Though initial investment is higher, the extended lifespan and reduced downtime lower long-term expenses.
5. Customization
- Johnson Carbide specializes in application-specific solutions, tailoring tools to unique customer requirements.
6. Enhanced Surface Finish
- Carbide step tools produce smoother finishes, reducing the need for secondary operations such as deburring or polishing.
7. Improved Productivity
- The ability to perform multiple machining operations with a single tool reduces setup times and increases throughput.
How to Use Step Tools Effectively
Proper usage maximizes the benefits of Johnson Carbide step tools.
Preparation:
- Mark the desired hole diameter on the workpiece
- Secure the material firmly to prevent movement
Drilling Steps:
1. Insert the step tool into the drill or CNC machine and tighten securely
2. Align the tool with the marked position
3. Use low speed to start, especially with metals, to avoid overheating
4. Apply steady, gentle pressure; let the tool do the work
5. Stop drilling once the desired step is reached
Tips:
- Use lubricant when drilling metals to reduce friction and heat
- Clean the tool after use to remove debris and prevent rust
- Store in a dry environment
CNC Machining with Step Tools
In modern manufacturing, CNC machines are programmed to utilize step tools for complex drilling and profiling operations. The integration of step tools into automated systems allows for high-speed, high-precision production, minimizing human error and maximizing repeatability.
Maintenance and Longevity
Johnson Carbide step tools can be re-sharpened and re-coated, extending their service life. Regular inspection for wear, proper cleaning, and correct usage are essential for maximizing tool longevity.
Maintenance Checklist:
- Clean after each use
- Sharpen as needed
- Store properly to avoid corrosion
Signs of Tool Wear
- Dull or chipped cutting edges
- Reduced cutting performance
- Increased vibration or chatter during operation
- Poor surface finish on workpieces
By monitoring these signs and performing timely maintenance, users can ensure optimal performance and avoid costly tool failures.
Customization and Special Forms

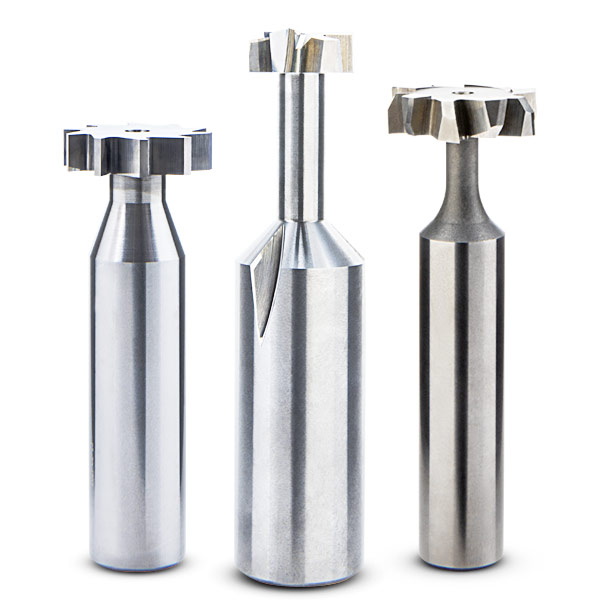

Johnson Carbide excels in manufacturing special form or profile step cutters tailored to customer specifications. Whether you need unique geometries, specific transitions, or critical dimensions, their engineering team collaborates closely with clients to deliver optimized solutions.
Capabilities:
- Custom diameters and step configurations
- Complex profiles with radius, form, and angle transitions
- High-performance coatings for specific materials
- Computerized inspection for critical dimensions
Application-Specific Engineering
Johnson Carbide's engineering team uses state-of-the-art CAD/CAM software and simulation tools to design step tools that precisely match customer requirements. This collaborative approach ensures that each tool delivers maximum performance in its intended application.
Environmental Impact and Sustainability
As industries move toward more sustainable practices, the environmental impact of tooling becomes increasingly important. Johnson Carbide step tools contribute to sustainability in several ways:
- Longer Tool Life: Fewer replacements mean less waste and reduced resource consumption.
- Re-sharpening and Re-coating: Tools can be refurbished multiple times, further extending their usable life and minimizing landfill waste.
- Efficient Machining: Reduced energy consumption due to faster, more efficient operations.
- Material Recovery: Carbide tools at the end of their life cycle can be recycled, and the recovered tungsten carbide can be used to produce new tools.
By choosing Johnson Carbide products step tool form, manufacturers not only improve their operational efficiency but also support environmental stewardship.
Conclusion
Johnson Carbide step tools represent the pinnacle of precision, durability, and versatility in industrial machining. Their advanced design, superior materials, and customizable features make them indispensable across aerospace, automotive, mining, medical, construction, electronics, and tool-and-die sectors. By streamlining operations and delivering consistent, high-quality results, Johnson Carbide step tools empower manufacturers to achieve new levels of productivity and efficiency.
Whether you require standard step drills or specialized form cutters, Johnson Carbide's commitment to innovation and customer collaboration ensures you have the right tool for every challenge. For industries demanding the best, Johnson Carbide products step tool form is the solution of choice.
Frequently Asked Questions (FAQ)
1. What materials can Johnson Carbide step tools machine?
Johnson Carbide step tools are suitable for a wide range of materials, including steel, aluminum, copper, titanium, plastics, and composites. Their high hardness and wear resistance make them ideal for both ferrous and non-ferrous materials.
2. How do step tools improve manufacturing efficiency?
Step tools combine multiple operations—such as drilling, profiling, and finishing—into a single pass. This reduces the need for tool changes, minimizes cycle times, and enhances overall productivity.
3. Can Johnson Carbide step tools be customized for unique applications?
Yes. Johnson Carbide specializes in custom tool solutions, working directly with customers to design step tools with specific geometries, diameters, and profiles to meet unique application requirements.
4. What is the typical lifespan of a Johnson Carbide step tool?
While lifespan varies by application and material, Johnson Carbide step tools generally last significantly longer than high-speed steel alternatives due to their superior hardness and resistance to wear. Regular maintenance and proper usage further extend their service life.
5. Are Johnson Carbide step tools compatible with standard drilling equipment?
Yes. These tools are designed for use with standard CNC machines and manual drills. Coolant-fed and non-coolant-fed options are available to suit various equipment types and applications.
