Introduction
Canada is home to an elite group of carbide forging dies manufacturers and suppliers, distinguished by their technical expertise, strict standards, and commitment to quality. These companies cater to buyers worldwide—including automotive, aerospace, electronics, mining, and heavy industry—by supplying advanced tungsten carbide dies and related components for precision forming, cutting, and shaping of metals. Foreign brands, wholesalers, and manufacturers regularly rely on Canadian sources for OEM/ODM services, technical consultation, and rapid export support.
What Are Carbide Forging Dies?

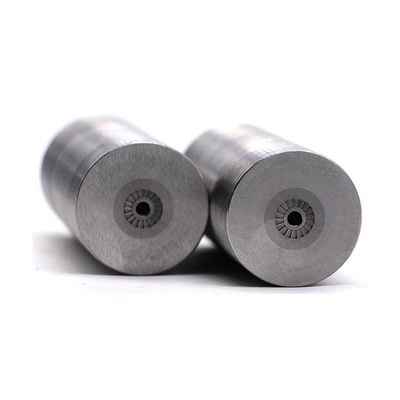

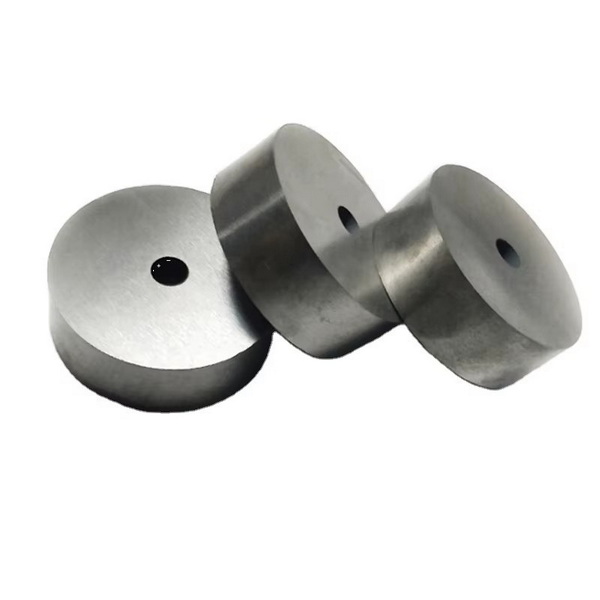

Carbide forging dies are specialized tools designed for the high-pressure forming of metals by closed- or open-die forging. Constructed from tungsten carbide or similar hard alloys, these dies possess extraordinary wear resistance, hardness, and durability. Their role is crucial in repetitive production where tolerance, consistency, and tool lifespan are paramount.
Key Features of Carbide Forging Dies
- Extremely high hardness and wear resistance.
- Excellent performance at elevated temperatures and in abrasive environments.
- Precision engineering for tight dimensional tolerances.
- Suitability for metals such as stainless steel, carbon steel, aluminum, copper, and specialty alloys.
- Versatile geometries for wire, tube, rod, fastener, and custom shapes.
The Manufacturing Process: From Material Selection to Finished Die
Material Selection and Preparation
Manufacturers typically use tungsten carbide (WC-Co) due to its high hardness, toughness, and resistance to wear. The cobalt content in the alloy can be customized between 6% and 15% to optimize impact resistance and longevity. Additional casing materials like tool steel or alloy steel are selected for their deformability and ability to withstand high shrinkage during cooling.
Technical Manufacturing Steps
1. Preassembly and Blanking: Tungsten carbide blanks and casing components are precisely manufactured to target specifications. Each part is inspected for flaws before assembly.
2. Heat Treatment: Casing and nib components are heated in a furnace to optimize structural integrity and hardness. Precise control of temperature and time is essential, with typical casing temperatures reaching about 900°F and even up to 2000°F for certain forging steps.
3. Percussive Forging: Components are placed in a die, and a press—such as a 50-ton percussion press—applies substantial compression force longitudinally. The casing shrinks, exerting high pressure on the carbide block, integrating it tightly and forming a flange for greater mechanical stability.
4. Grinding and Polishing: Diamond wheels and precision CNC machines grind the die surfaces to tight tolerances, often less than 0.01mm variation. Polishing improves surface finish and reduces friction in use.
5. Finishing and Stress Relief: Dies are reheated and then cooled in a controlled manner to eliminate residual stresses from forging. This step is vital for preventing premature failure and achieving uniform hardness (often between Rockwell 42-45 or HRA88-92).
6. Precision Inspection: Final dies undergo comprehensive dimensional inspection, hardness testing, and surface roughness assessment using coordinate measuring machines and other advanced equipment to ensure all specifications are met.
Quality Control
Manufacturers adhere to multi-stage quality control protocols. This includes non-destructive testing (NDT), chemical analysis, mechanical property validation, and documentation of results. Only dies that pass all stages are released for shipment, guaranteeing reliability for high-volume and demanding applications.
Technological Innovations
Canadian carbide forging die producers continually advance their processes through:
- CNC machining for micron-level accuracy and repeatability.
- Electrical Discharge Machining (EDM) for complex contours and ultra-smooth profiles.
- High Velocity Oxy-Fuel (HVOF) coatings to extend die lifespan and enhance performance, as these coatings can raise productivity by over 30% compared to conventional tools.
- Smart dies featuring embedded sensors for real-time monitoring and predictive maintenance.
Efforts to recycle spent tungsten carbide materials further improve sustainability and reduce production costs in large-scale manufacturing.
Range of Products and Custom Solutions

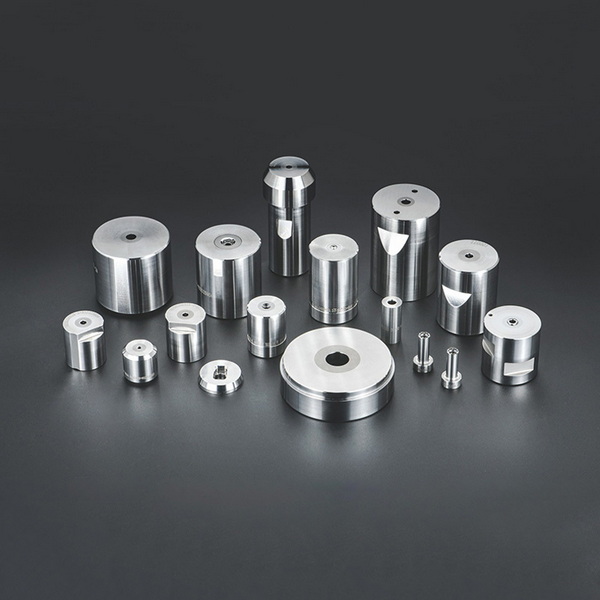

Top Canadian suppliers offer an extensive catalog of carbide forging dies and related tooling, covering:
- Round, square, hexagonal, and highly intricate geometries.
- Micro-sized dies for fine wire and electronics (diameters as low as 0.1mm).
- Large-scale dies for heavy industry and infrastructure.
- Matched die sets for high-speed production equipment.
- Specialized dies for cold heading, fasteners, screws, cables, and more.
- Custom die fabrication for unique projects and specialized industries, with extensive OEM/ODM services supporting client-specific drawings and materials.
Industry Applications
Carbide forging dies manufactured in Canada power production across automotive, aerospace, electronics, mining, packaging, fastener, and construction sectors. Automotive and aerospace firms utilize these dies for complex component forming, microelectronics manufacturers for high-precision wiring, and heavy industry for pipeline and structural metal shaping.
Key Advantages of Canadian Suppliers
- International certifications: ISO 9001, AS9100D, PED, and industry-specific standards.
- Comprehensive export and logistics support.
- Rapid prototyping, technical consulting, and multilingual after-sales service.
- Factory audits and virtual visits for procurement assurance.
- Strict production auditing, process documentation, and warranty coverage.
Procurement and Sourcing Best Practices
Global buyers are advised to examine supplier certifications, request sample dies for validation, clarify terms of delivery and warranty, and assess technical support capabilities. Transparency in documentation and open communication are hallmarks of trustworthy Canadian die suppliers. Many offer facility tours or virtual audits to help buyers verify capacity and quality firsthand.
Market Trends and Developments
The Canadian carbide forging die sector is characterized by rapid technological progress, driven by rising demand from automotive, aerospace, and electronics industries. Sustainable practices, such as carbide recycling and the use of advanced coatings, are becoming standard. Automation, digitization, and increasingly sophisticated die design further propel industry growth.
Long-Term Value and Support
Leading suppliers back their products with training, troubleshooting, preventive maintenance programs, and extended technical support. These services maximize die performance, reduce operational downtime, and ensure optimal value for customers. With robust OEM/ODM capabilities and an international outlook, Canadian carbide forging die manufacturers continue to offer exceptional solutions for global manufacturing needs.
Conclusion
Canadian carbide forging dies manufacturers and suppliers exemplify quality, innovation, and reliability. They deliver precision-engineered solutions tailored for the most demanding industrial sectors and provide world-class support to international buyers through advanced technology, strict quality control, and sustainable practices. As manufacturing requirements become more complex, Canadian suppliers remain at the forefront—helping businesses reach new heights in productivity, efficiency, and product excellence.
Frequently Asked Questions (FAQ)
1. What are the main benefits of sourcing carbide forging dies from Canadian manufacturers?
Canadian suppliers offer high-quality carbide forging dies with expert engineering, hardness, precision tolerances, and outstanding OEM/ODM support.
2. How do Canadian manufacturers guarantee product quality and consistency?
Quality is ensured through advanced CNC and EDM processes, rigorous heat treatment and finishing protocols, multi-stage inspection, and adherence to ISO and industry standards.
3. Can Canadian forging die suppliers handle custom OEM or ODM requests?
Yes, leading suppliers provide full customization, fabricating dies to precise drawings, materials, dimensions, and industry specifications.
4. Which sectors most rely on Canadian-made carbide forging dies?
Automotive, aerospace, electronics, mining, packaging, fastener, and construction industries all rely on these dies for high-volume, precision manufacturing needs.
5. What should buyers review before placing an order?
Buyers should confirm supplier certifications, request technical documentation or samples, clarify logistics and warranty terms, and consider on-site or virtual audits for assurance.
